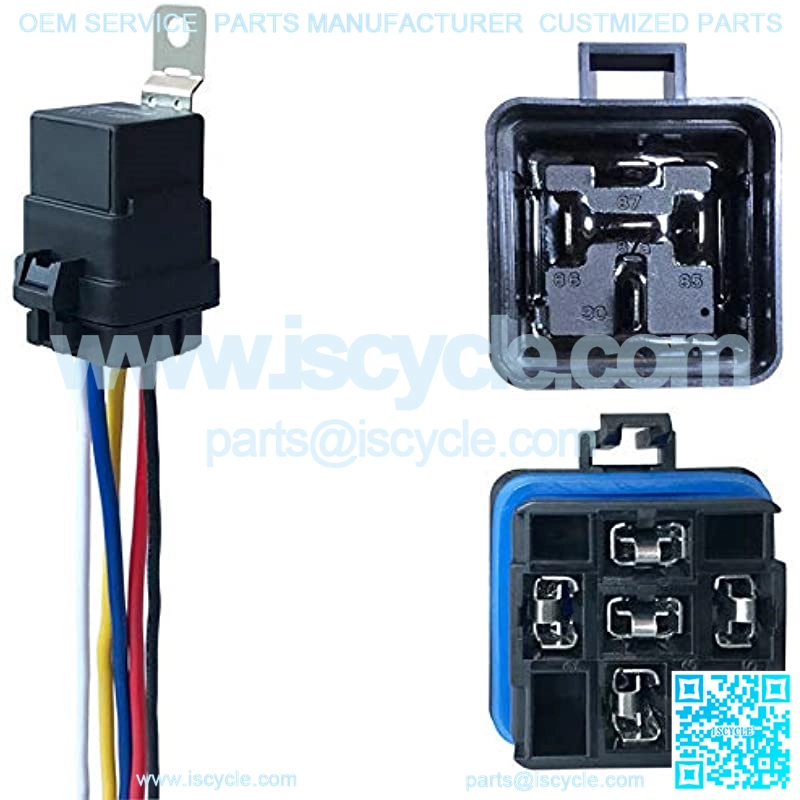

1 Pack 40/30 AMP 12 V DC Waterproof Relay and Harness – Heavy Duty 12 AWG Tinned Copper Wires, 5-PIN SPDT Bosch Style Automotive Relay

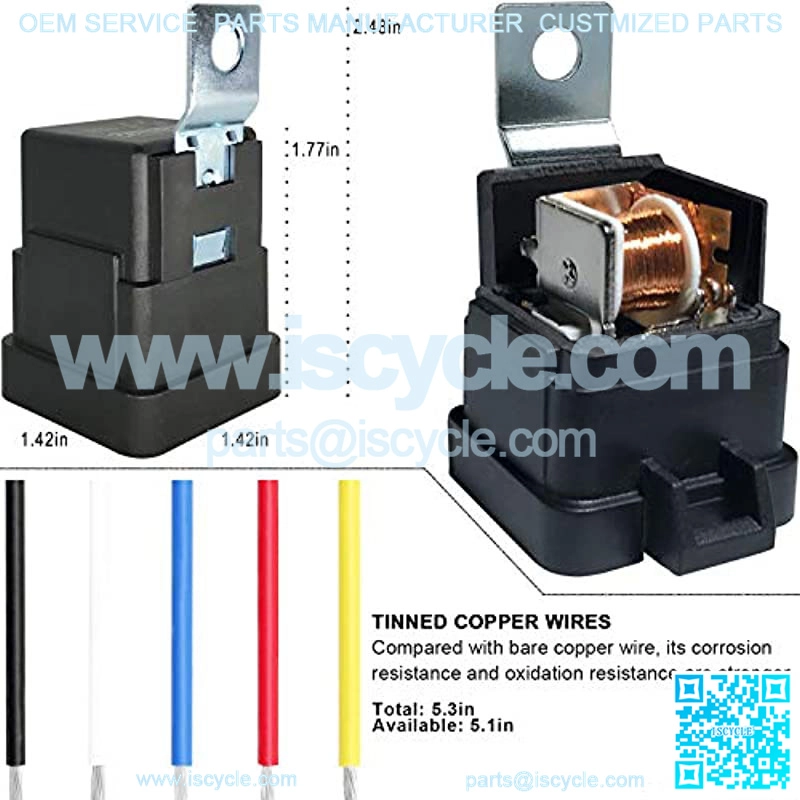

12 AWG tinned copper wires for pin 30, 87, 87a. 16 AWG tinned copper wires for pin 85 and 86. Length: 5.1in
12V waterproof 5-prong relay (max 15.6V). 40 AMP / 30 AMP High switching capability
Excellent waterproof and dustproof ability, high quality in any weather conditions
12v relays can operate with anywhere between 9v and 15.6v, so if you are looking for a 14v 5-pin relay, this is what you want

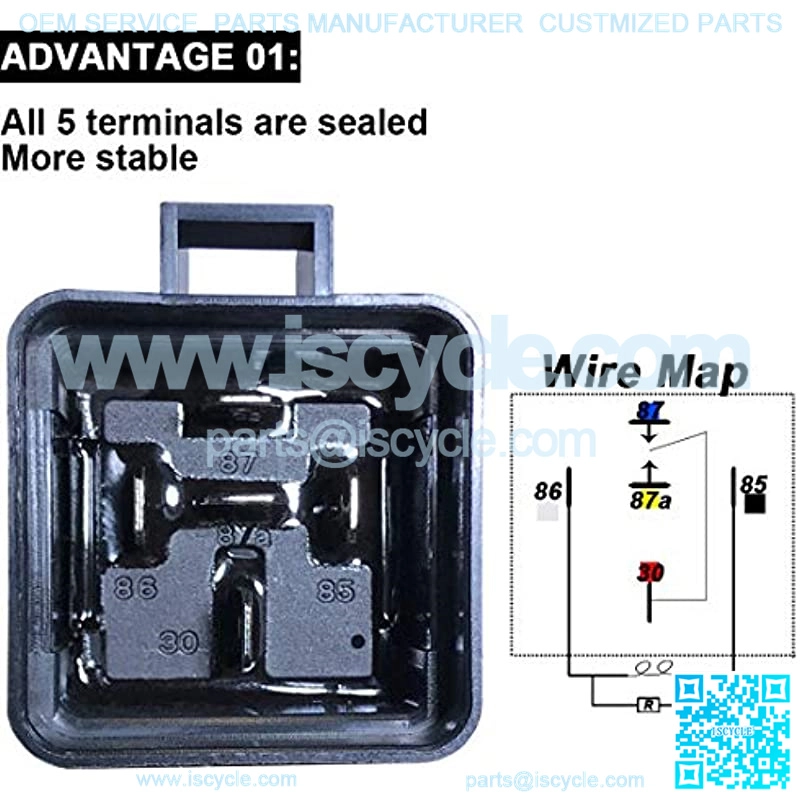

SPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated
Product Description
Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80 ??
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 40A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 40A
Max Switching Power: 560 W

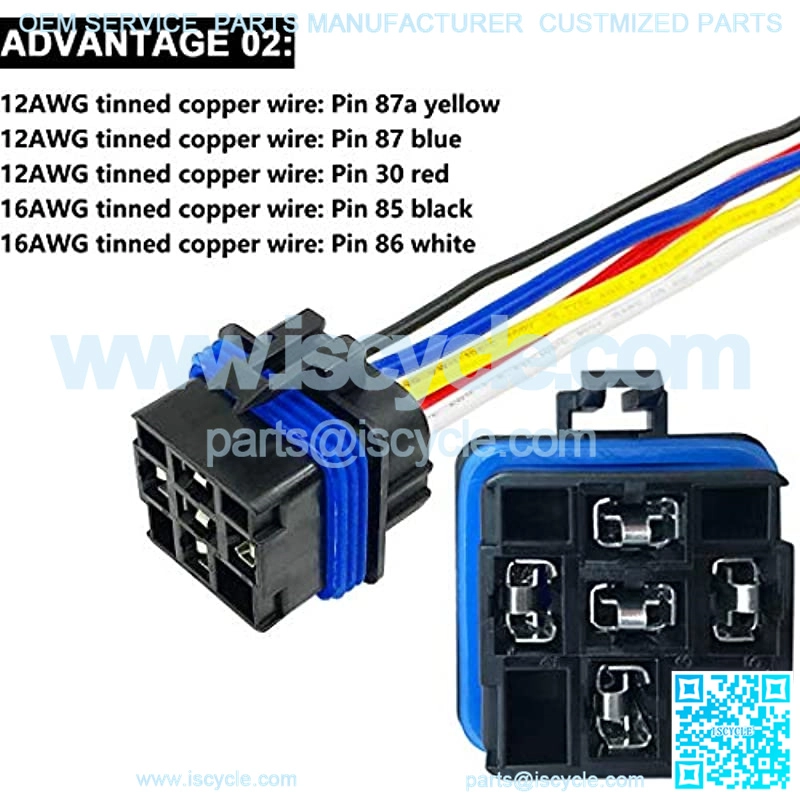

12AWG Tinned Copper Wire: Pin 87a Yellow
12AWG Tinned Copper Wire: Pin 87 Blue
