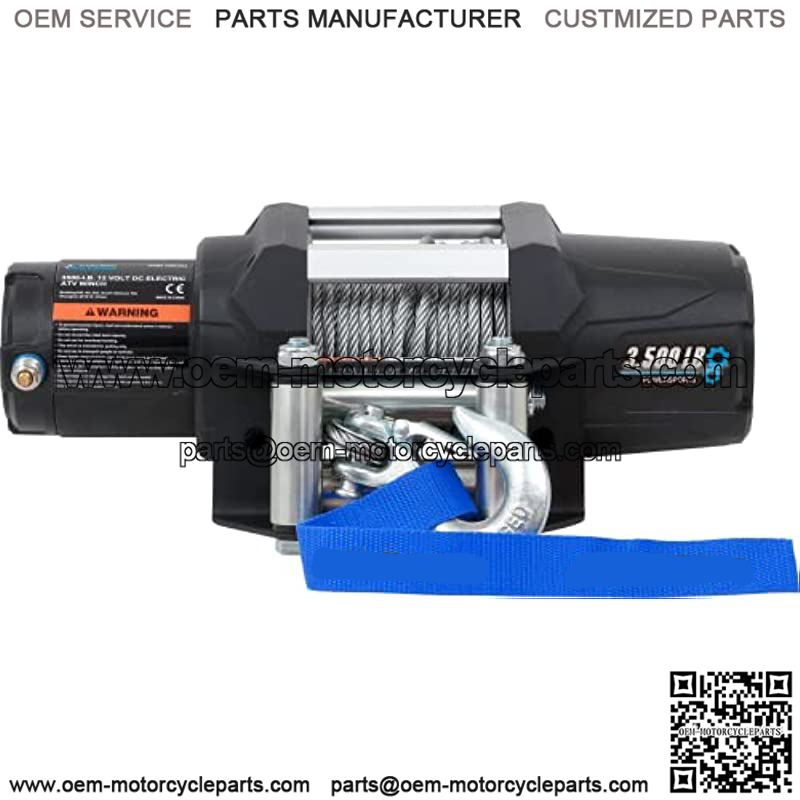

12V DC ATV/UTV Electric Winch 3500 lb. Load Capacity w/Steel Cable Wire Rope 1/4″ Diameter x 50′ Length

Powerful 12V DC 1.3 HP Permanent Magnet motor and 3-planetary gear train deliver faster line speed under load, with lower amp draw, Gear Reduction Ratio: 167:1.
Come with ergonomic wired remote control, allows for retracting the rope for winching as desired, for safe operation at a distance.
The automatic load-holding brake ensures maximum safety. The winch contains a Roller fairlead and an aircraft-grade Wire rope. Rope size: 0.2″ x 50??.
The free spooling provides a fast line-out, while the 10?? ergonomic handheld remote control allows for safe operation at a distance.
Standard duty winch with a steel rope and an 3,500 lb. capacity, provides car and off-road recovery in tough situations for ATVs.
Designed, engineered, and tested in the USA, Manufacturer warranty: 1-year warranty. Dimensions: 13.3 X 4.7 X 4.6 inches. Weight: 22.93 Ib. SPECIFICATIONs
Rated Single Line Pull
3500Ib (1587kg)
Gear Train
3-Stage Planetary
Gear Ratio
167:1
Brake
Auto. Load Holding Mechanical
Drum (Dia. X L)
2″ X 5″ (50mmx84mm)
Weight
22.93 Ib. (12.15kg)
Free Spool
Cam Activated
Fairlead
Roller fairlead
Rope
0.2″ x 50?? Galvanized Steel
IP Rating
IP 68 – Winch and Controls
Mounting Pattern
3????x 4.9???? (76mmx124mm)

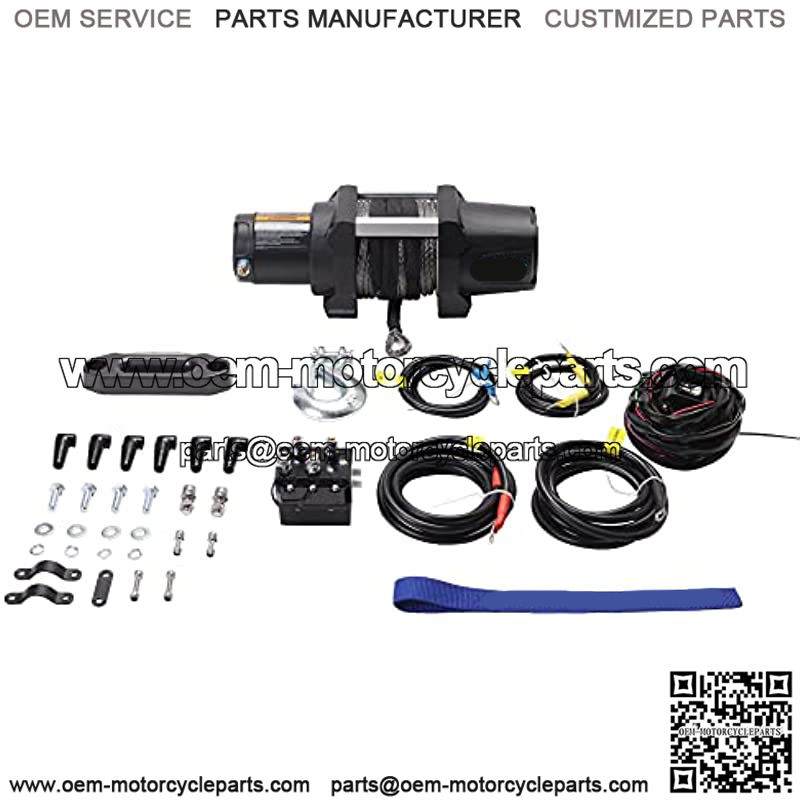

Mounting Hardware
Adaptor Plate: 4xM8x25mm; Fairlead: 2x M8x25mm; Relay: 2x M5x20 mm
