Centrifugal Clutch Drum Shaft w/ Pads Springs For Arctic Cat 0823-556 0823-098

Centrifugal Clutch Drum Shaft w/ Pads Springs For Arctic Cat 0823-556 0823-098

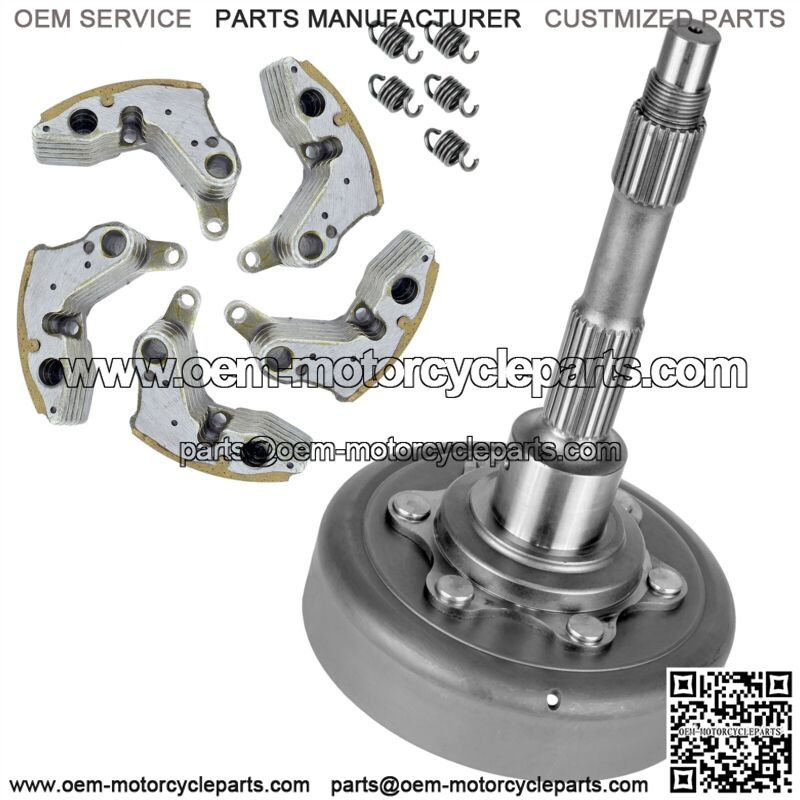

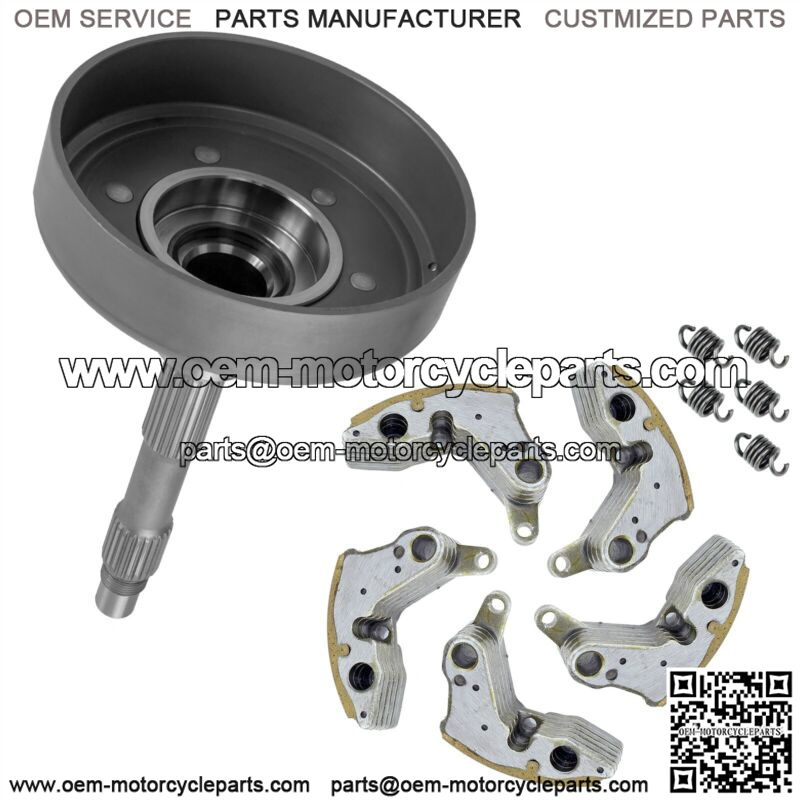

Clutch Drum Shaft with Clutch Pads/Springs Kit!
Fits the Following ARCTIC CAT MODELS
650 H1 2011
650 H1 MUD PRO2011
700s TRV CRUISER 2011
PROWLER 550 XT 2011 2012
PROWLER 700 HDX KE 2011 – 2016
PROWLER 700s XTX 2011
TRV 550 H1 EFI 2011
TRV 700 STD GT CRUISER LTD XT EPS SE 2011-2016
TRV 700 GT Cruiser
1000 GT 2012
Wildcat 1000 GT 2010 (Engine Serial No. Up To 20044789)
1000 MUD PRO LTD SE EPS 2012 – 2017
550 STD GT LTD XT 2012 2014
650 2012
700 GT LTD XT 2012-2014
PROWLER 1000 XTZ 2012 – 2014
TBX 700 STD GT 2012 – 2014
TBX 700 EPS SE 2016 2017
1000 XT 2013 – 2015
PROWLER 550 XT 2013 – 2015
TRV 550 LTD T 2013 – 2015
WILDCAT 1000 2013
700 TBX 2015
XR 700 LTD XT 2015
700 Mud PRO LTD EPS 2012-2017
PROWLER 1000 XT 2015-2017
PROWLER 700 XT EPS 2015-2017
XR 550 STD LTD XT 2015
1000 XT EPS 2016 2017
ALTERRA 550 STD XT EPS 2016
ALTERRA 700 XT EPS MUD PRO 2016-2019
HDX 700 XT SE CREW Hunter Edition 2016 2017
700 HDX XT 2017
Alterra TRV 1000 XT EPS 2017
Alterra TRV 550 XT EPS 2017
Alterra TRV 700 XT EPS 2017 2019 2020
VLX 700 2017
Alterra TB 00 EPS 2018-2020
Alterra VLX 700 EPS 2018
Alterra 570 EPS XT 2019 2020

Replaces ARCTIC CAT Part Numbers
Clutch Drum Shaft | 0823-556 | 0821-002 | 0823-096 | 0823-261 | 0823-365
Clutch Shoes / Pads (Just the pads, NO PLATE!) | 0823-098
Dimensions
Clutch Drum ID | 140mm
Clutch Drum Bearing Raceway | 62mm
Shaft Bearing Diameter | 40mm
Variator Shaft Length | 153mm
Stationary Drive | Diameter 24.5mm | Splines 23t
Cam Plate Shaft | Diameter 24.5mm | Splines 23t
Clutch Shoe Height | 24mm
Clutch Shoe Pivot Mount | 9mm
Clutch Shoe Full Length | 79mm
Order Includes:
1x Centrifugal Clutch Drum
1x Centrifugal Clutch Pads
**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
**SHIPS FROM USA**
