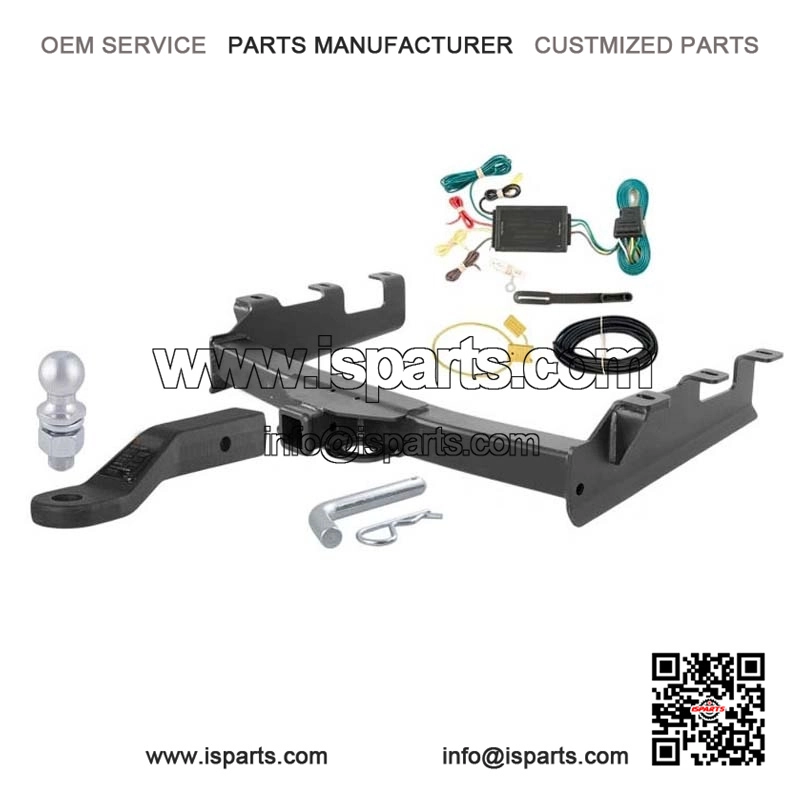

Class 5 Complete Trailer Hitch Package for Silverado/Sierra 2500HD/3500HD

Class 5 Trailer Hitch Tow Package for Silverado & Sierra 2500HD/3500
2001-2010 Chevy Silverado 2500HD / 3500 **Short Bed ONLY
2001-2010 GMC Sierra 2500HD/3500 **Short Bed ONLY
Please Note: Installation Requires Temporary Lowering of Spare Tire
NO Drilling Required
Hitch Information
Part Number: 15302
Weight: 65 lbs.
Weight Carrying Capacity/Tongue Weight: 16,000 lbs / 2,400 lbs
Weight Distribution: 16,000 lbs.
Weight Distribution Tongue Weight: 2,400 lbs.
Receiver Tube Size: 2 in.
Receiver Crosstube: Exposed
Installation Time: 30 min.
Wiring Information
Part Number: 59496
Weight: 1.75 lbs.
Wiring Type: 3-to-2 Wire Taillight Converter
Electrical System Type: N/A
Output Type: 4-Way Flat
Amp Rating (Turn & Brake/Tail Light Circuits): 3.0 Amps / 6.0 Amps
Converter Type: Protected & Powered
Installation Time: N/A min.
Hitch Ball Information
Part Number: 40090
Weight: 3 lbs.
Ball Capacity: 10000 lbs.
Ball Diameter: 2 in.
Shank Diameter: 1.25 in.
Shank Length: 2.250 in. in.
Shank Rise: 0 in.
Torque: 450 FT LB lbs.
Ball Finish: Chrome
Ball Color: Silver
Ball Mount Information
Part Number: 45340
Weight: 11.2 lbs.
Gross Towing Weight: 17,000 in.
Tongue Weight: 2,550 lbs.
Receiver Tube Size: N/A in.
Drop: 2 in.
Rise: 1 in.
Length: 8.500 in. in.
Ball Hole Size: 01-01-2004 in.
Finish: Black Powder Coat
Pin Information
Part Number: 21500
Weight: 0.55 lbs.
Pin Diameter: 0.625 in.
Finish: Clear Zinc
Receiver Size: 2×2
Pin Includes: Pin & Clip
