Description
Premium Quality Replacement Part

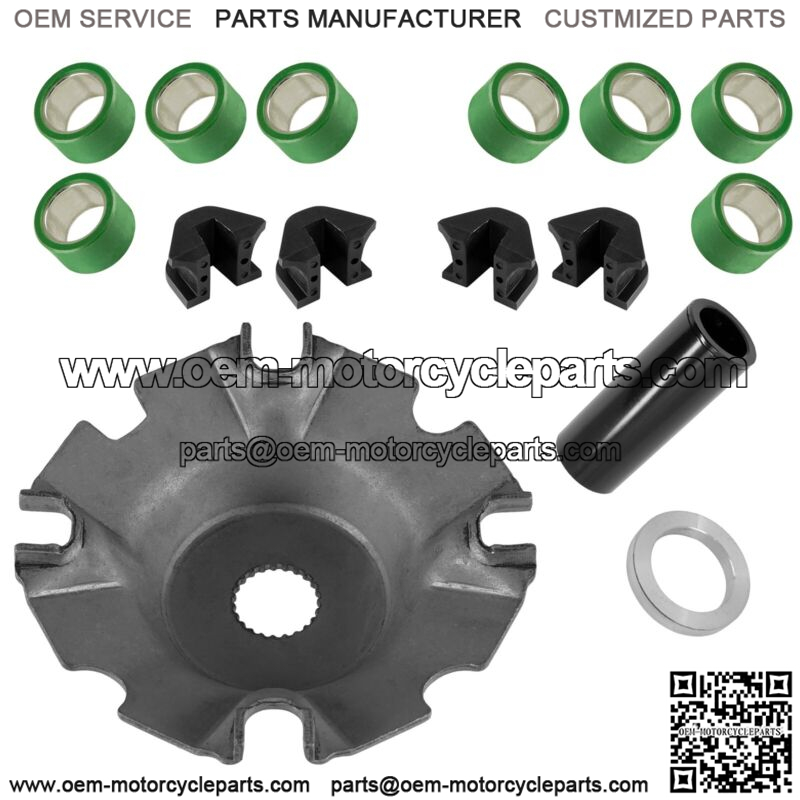

Drive Moveable Plate Damper Roller & Spacer For Arctic Cat TRV 1000 2009-2015For Artic Cat Models:TRV 1000 2009-2015Order Includes:
1 x Plate | 0823-276
4 x Clutch Damper | 0823-277
8 x Roller Clutch | 0823-170
1 x Long Spacer | 0823-358 0823-265
1 x Spacer | 0823-292
Dimensions & Measurements :

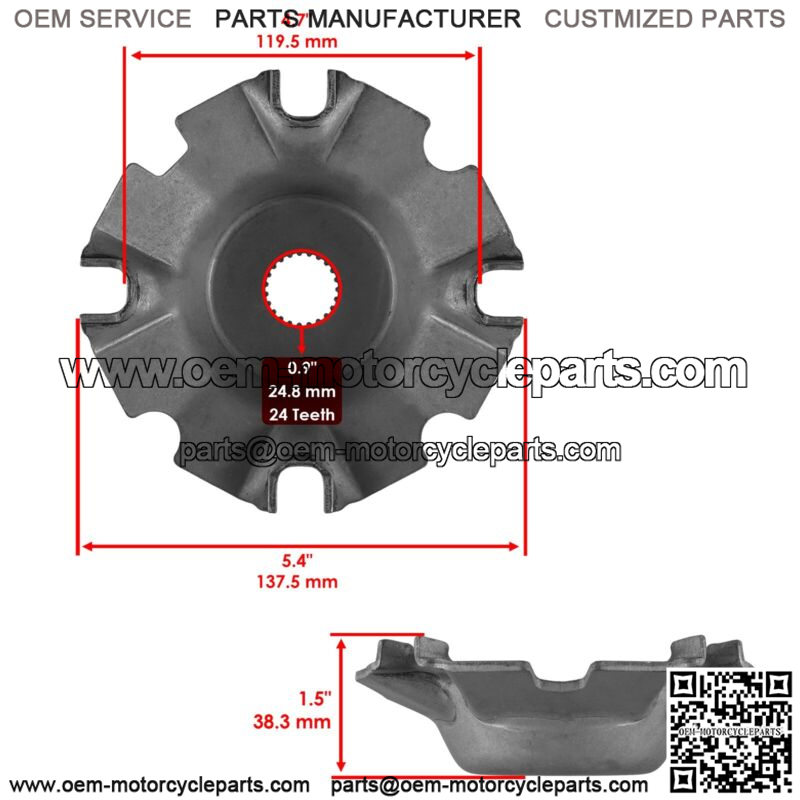

Plate:
Height: 38.3 mm | 1.5″
Diameter: 137.5 mm | 5.4″
Inner Diameter: 24.8 mm | 0.9″
Teeth: 24 Teeth

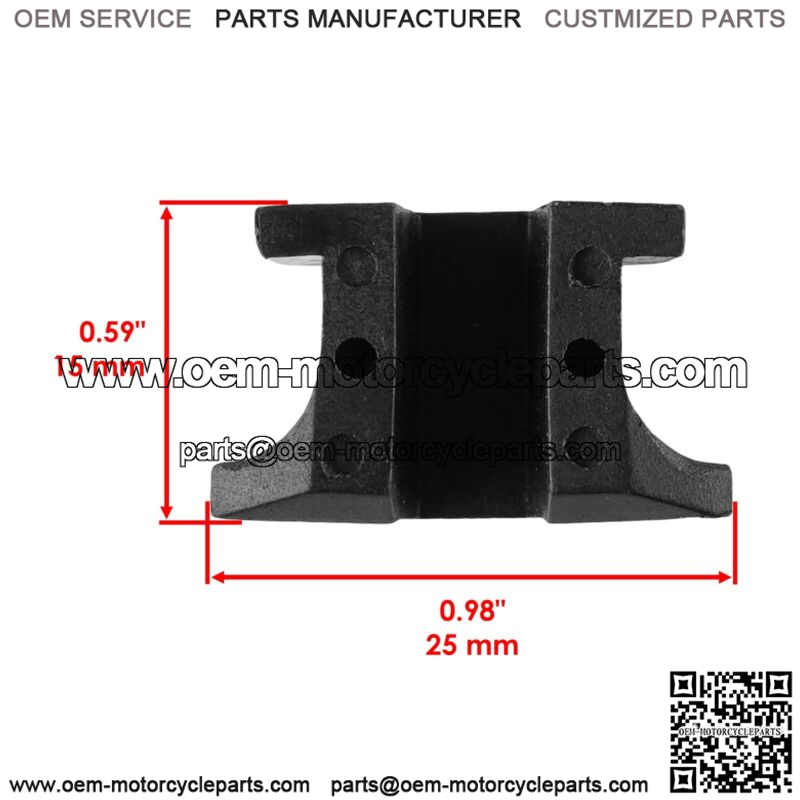

Clutch Damper:
Width: 15mm | 0.59″
Length: 25mm | 0.98″

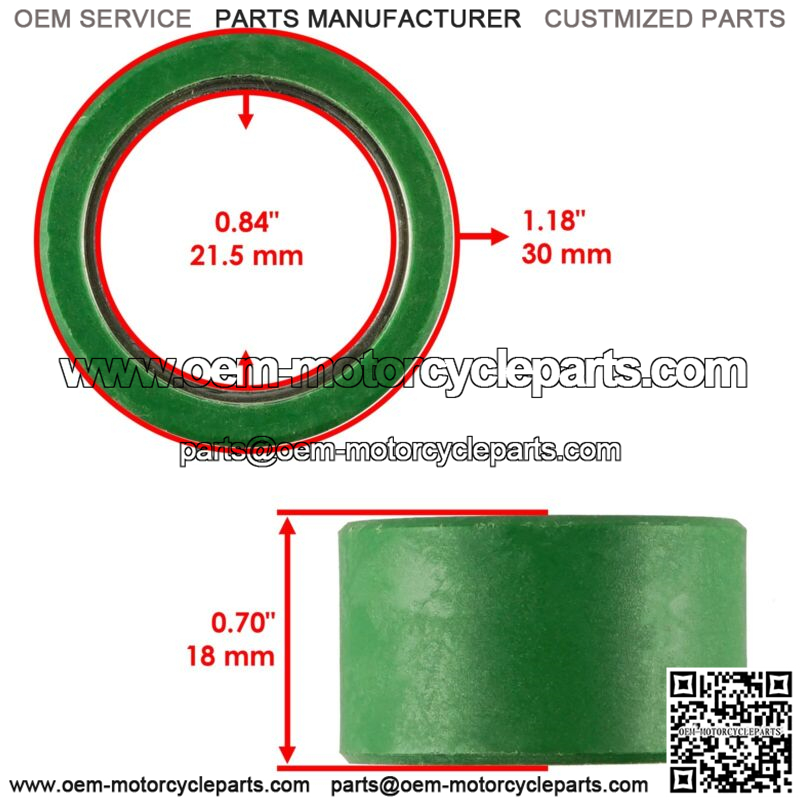

Roller Clutch:
Width: 18mm | 0.70″
Inner Diameter: 21.5mm | 0.84″
Outer Diameter: 30mm | 1.18″

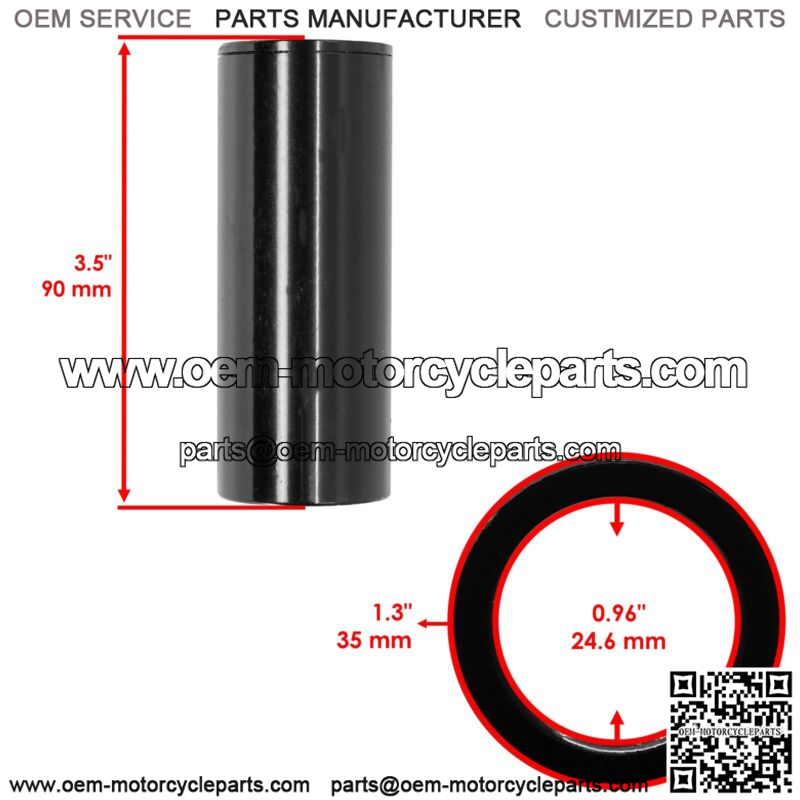

Long Spacer:
Inner Diameter: 24.6mm | 0.96″
Outer Diameter: 35mm | 13″
Height: 90mm | 3.5″
Spacer:
Inner Diameter: 35mm | 1.3″
Outer Diameter: 50mm | 1.9″
Thickness: 6.9mm | 0.2″
**
