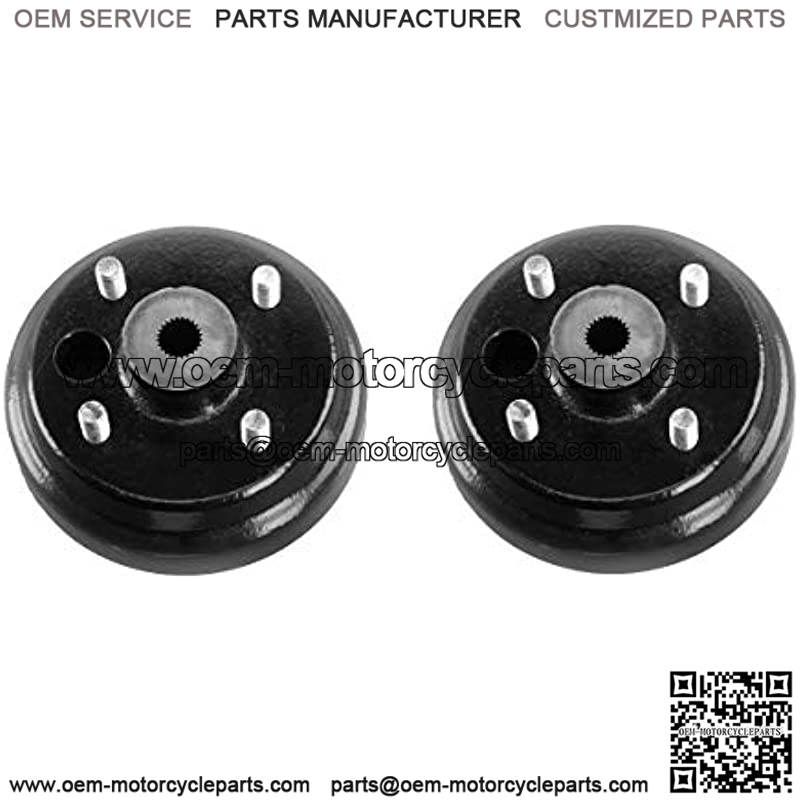

Golf Cart Brake Drum/Hub Assembly (Electric) for EZGO TXT Replaces OEM# 19186G1P, 2-Pack

Used on 1982-current E-Z-GO Electric Vehicles. Warm tips: Hub spline and Rear Axle Shaft Spline should be matched tight. When one of them is wear out, both of them should be replaced at the same time. Other wise the hub spline will strip soon.

This hub/drum is a replacement for the earlier hub & drum and has the star spline instead of the straight key.

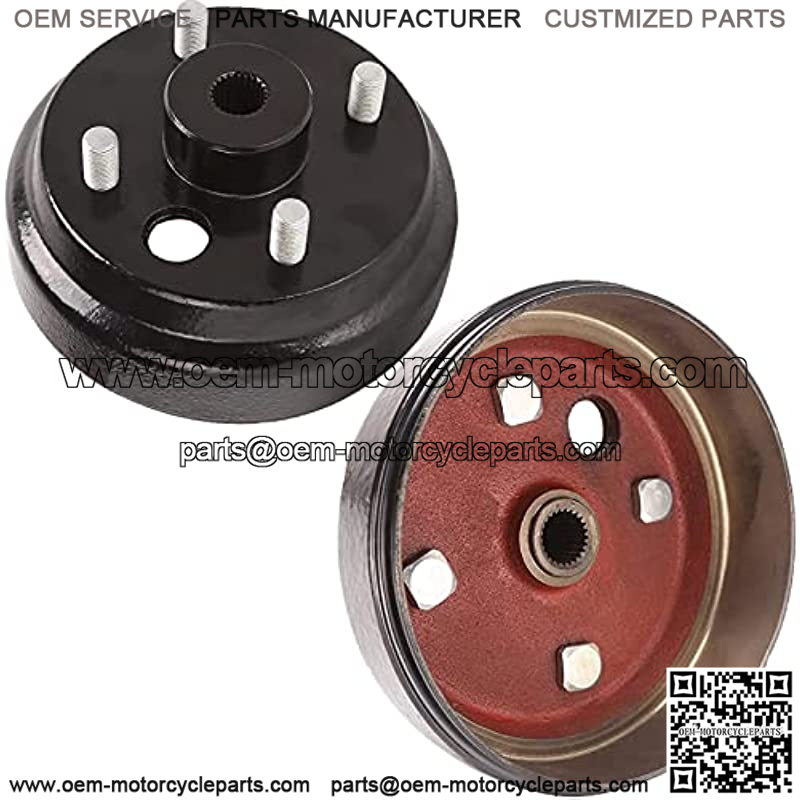

Has a 3/4-Inch center hole with a 24-tooth star spline

This hub/drum will NOT operate with a keyed axle/hub interface.

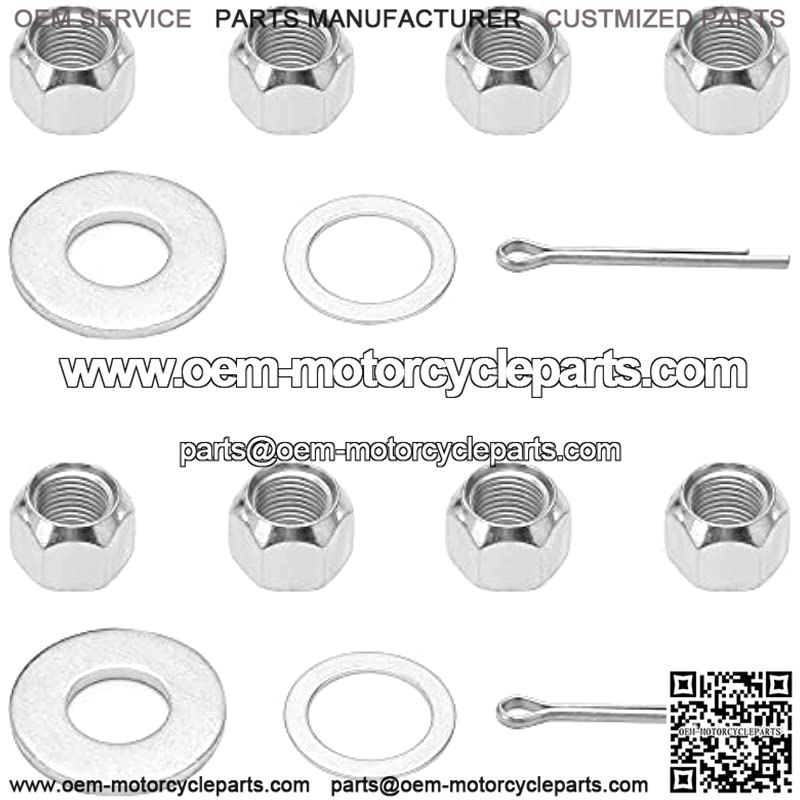

he drum is held in place by a castellated nut (5/8-Inch x 18tpi) and a thick (.118-Inch) flat washer.
Product Description
Production Decription: Ezgo PDS brake drum.
Weight: 2.994kg
Dimensions: 17.2 * 8.2cm
The Brake Drum/Hub Assembly is used on 1982-current E-Z-GO Electric Vehicles.
The vehicle’s brake drums are an important part of maintaining the safe braking ability of the vehicle and should be replaced in a timely manner.
This brake drum/hub assembly replaces Part# 19186G1
