Rear 5138796 5439874 Lower Outer Control Arm Bushing Kit For Polaris

Premium Quality Replacement Part
Rear Lower Outer Left or Right Control Arm Bushing Kit
For Polaris Models:
Ranger Crew 900 2014-2015
Ranger XP 900 2014-2019
RZR 570 2014-2020
ACE 900 2016-2019
ACE 570 2016-2019
ACE 500 2017-2019
Ranger 570 2014-2023
Ranger Crew 570-6 2016
Ranger Crew 570 2014-2023
Ranger XP 570 2016
Ranger 500 2×4 4×4 2017-2022
Ranger ETX 2015-2016
Ranger Diesel 2015-2018
Ranger Crew Diesel 2015-2018

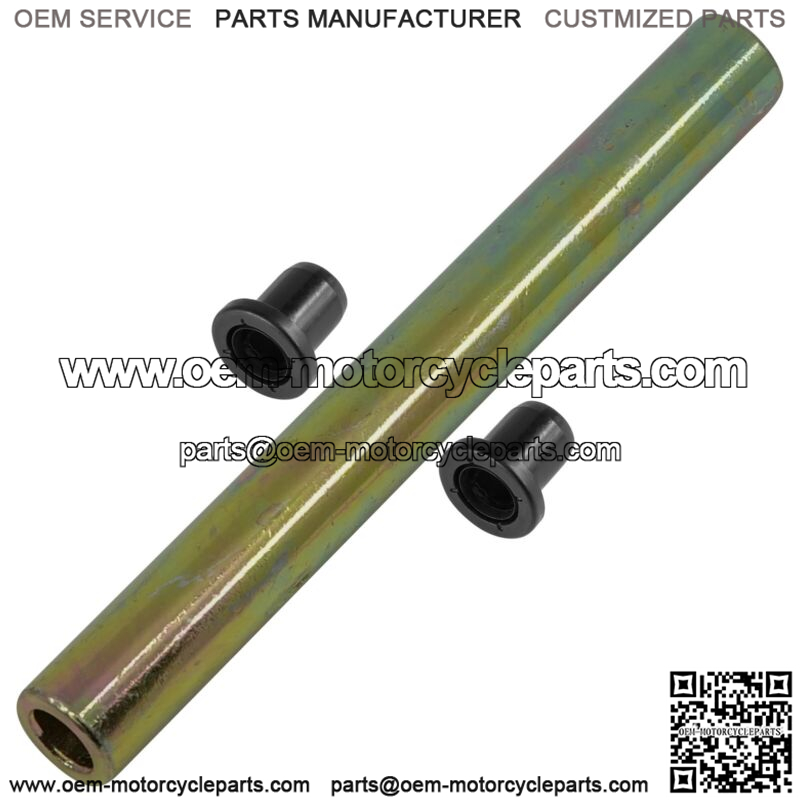

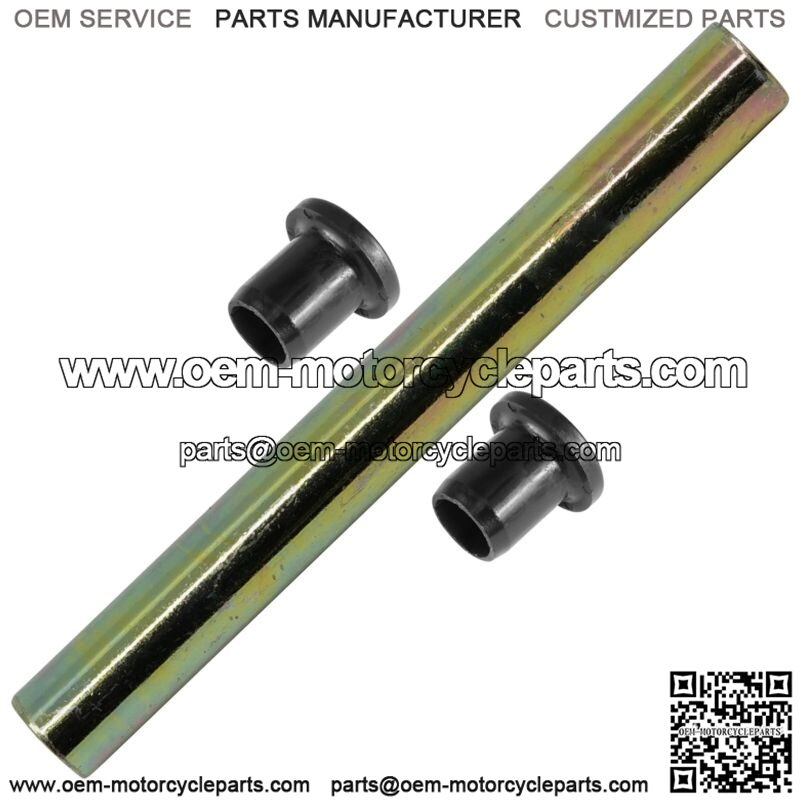

Order Includes:

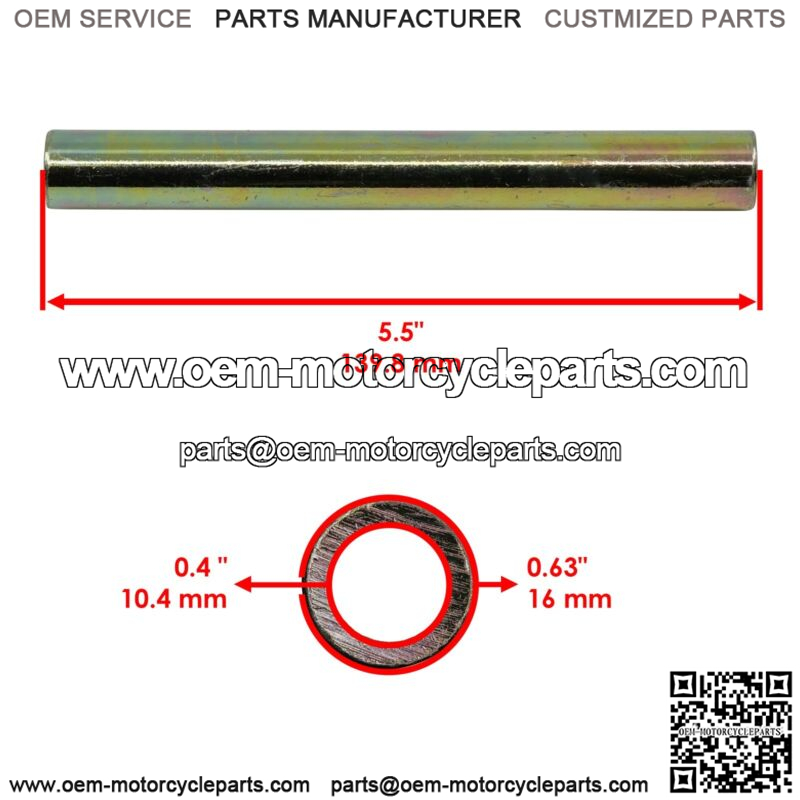

1 x Long Pivot Shaft | 5138796
Length : 139.8mm | 5.5″
Inner Diameter : 10.4mm | 0.4″
Outer Diameter : 16 mm | 0.63″

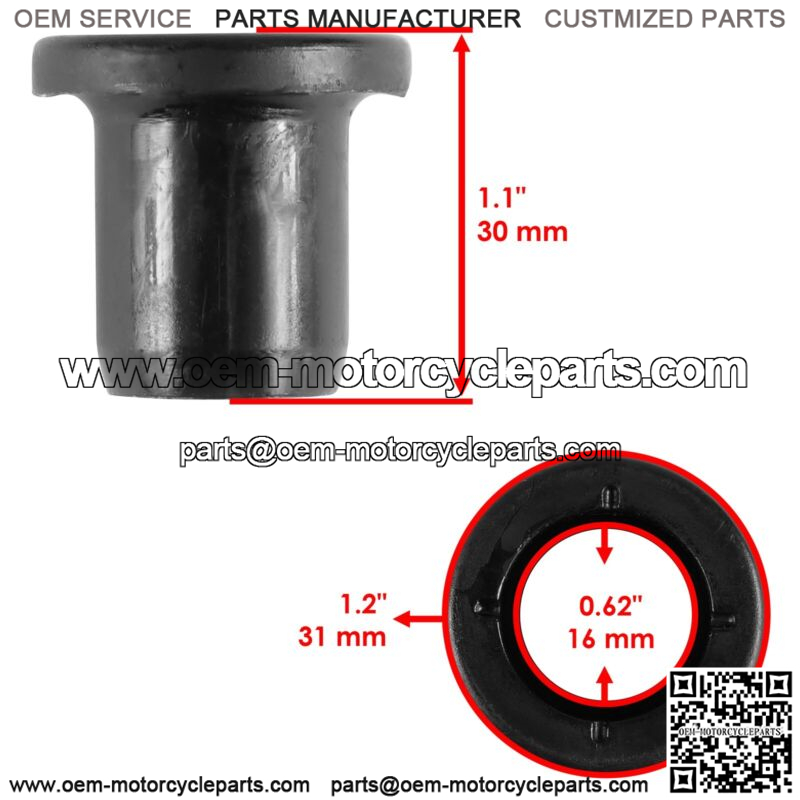

2 x Short Bushing | 5439874 5436832 5436505
Height : 30 mm | 1.1″
Inner Diameter : 16 mm | 0.62″
Outer Diameter : 31 mm | 1.2″

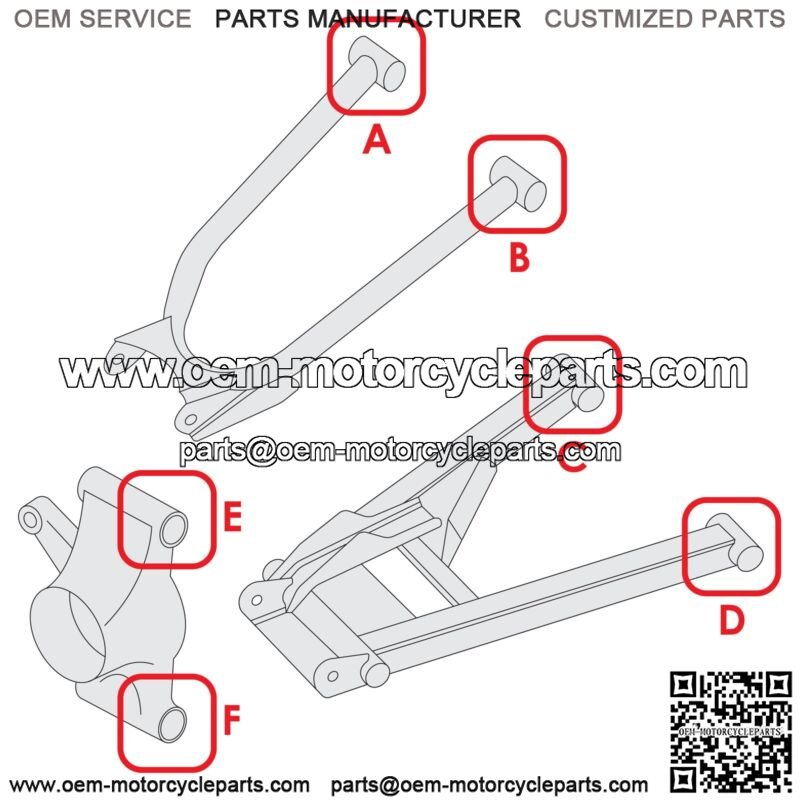

Note: Installs On Location (F) In Second Picture
Control Arm Part Number:
Rear Lower Left 1018460-458 1018460-589 1018460-385 1018460-133 1018460-293 1018460-689 1021814-647 1018115-458 1021704-458 1018115-133 1018115-385 1018460-689 1018995-458
Rear Lower Right 1018461-458 1018461-589 1018461-385 1018461-133 1018461-293 1018461-689 1021815-647 1018116-458 1021705-458 1018116-133 1018116-385 1018461-689 1018995-458
**
